ADIS16448 Loop.vi

Connector Pane

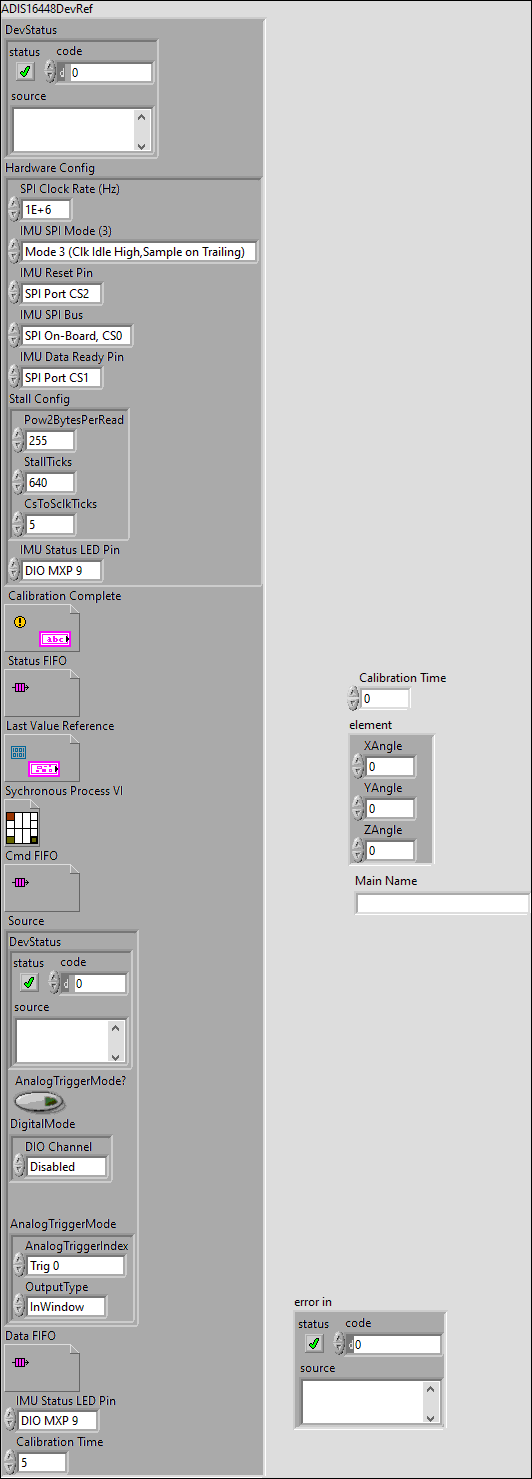

Front Panel

Controls and Indicators

status status is TRUE (X) if an error occurred or FALSE (checkmark) to indicate a warning or that no error occurred. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

code code is the error or warning code. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

source source describes the origin of the error or warning. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

DevStatus

status status is TRUE (X) if an error occurred or FALSE (checkmark) to indicate a warning or that no error occurred. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

code code is the error or warning code. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

source source describes the origin of the error or warning. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

Hardware Config

SPI Clock Rate (Hz)

IMU SPI Mode (3)

IMU Reset Pin

IMU SPI Bus

IMU Data Ready Pin

Stall Config

Pow2BytesPerRead

StallTicks

CsToSclkTicks

IMU Status LED Pin

Calibration Complete

Status FIFO

Last Value Reference

Sychronous Process VI

Cmd FIFO

Source Source specifies the source signal for the interrupt.

DevStatus DevStatus describes the error status before this VI or function runs. The default is no error.

status status is TRUE (X) if an error occurred before this node ran or FALSE (checkmark) to indicate a warning or that no error occurred before this node ran. The default is FALSE.

code code is the error or warning code. The default is 0. If status is TRUE, code is an error code. If status is FALSE, code is 0 or a warning code.

source source specifies the origin of the error or warning and is, in most cases, the name of the node that produced the error or warning. The default is an empty string.

AnalogTriggerMode? AnalogTriggerMode? specifies, when TRUE, to use an analog trigger output instead of a digital input as the digital source.

DigitalMode DigitalMode specifies information about the digital input you want to use as the digital source.

DIO Channel DIO Module specifies the slot number on the CompactRIO device of the digital module you want to use. DIO Module can specify a value of Slot 4 or Slot 6. If DIO Module specifies a value of Default, this VI uses the default digital module. The default digital module is the first digital module, or the module in slot 4.

AnalogTriggerMode

AnalogTriggerIndex This list the number of available analog trigger logic implemented inside the FPGA code. As of rev 1.8 there is 8 available analog trigger logic.

OutputType

Data FIFO Source specifies the source signal for the interrupt.

IMU Status LED Pin

Calibration Time

XAngle

YAngle

ZAngle

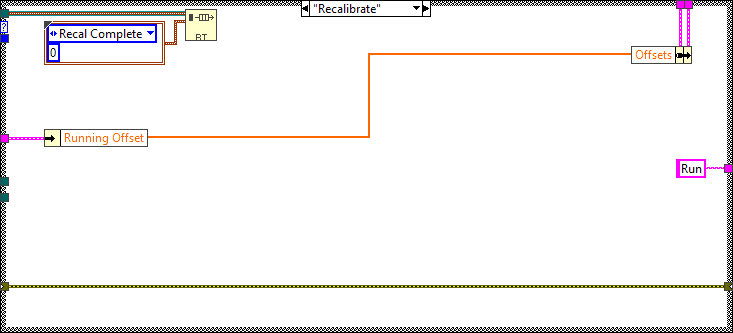

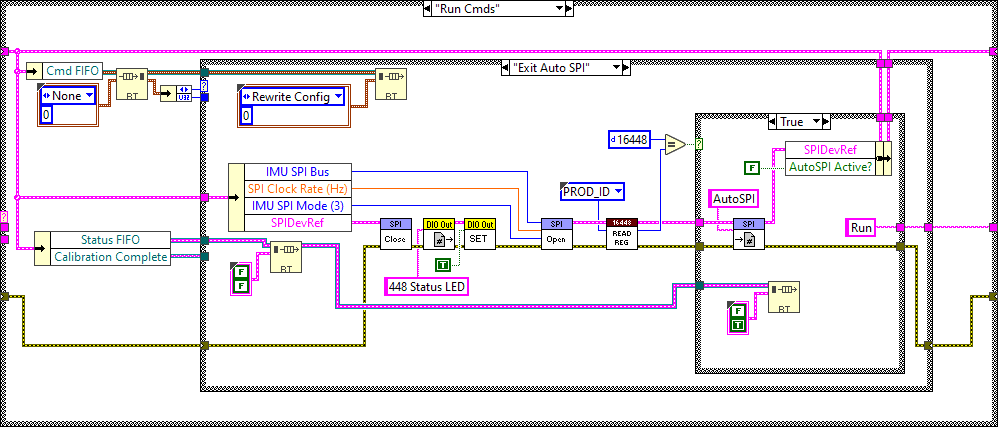

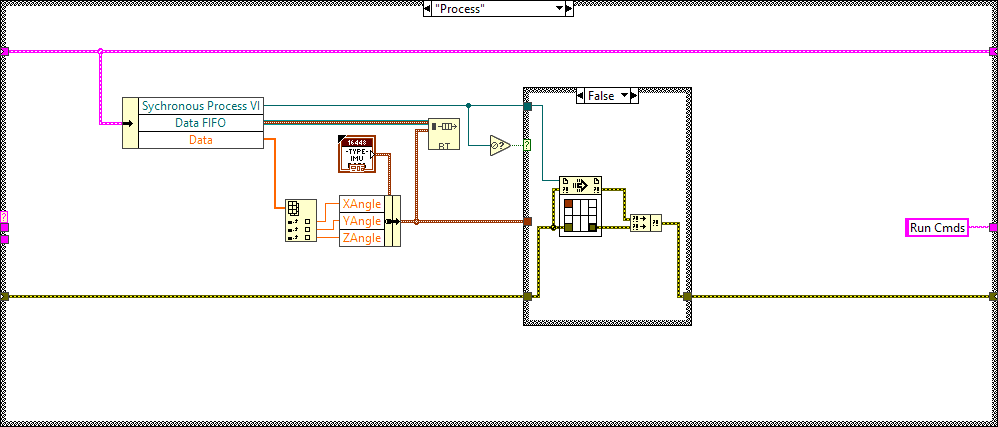

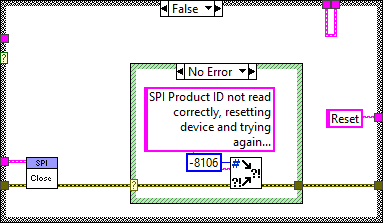

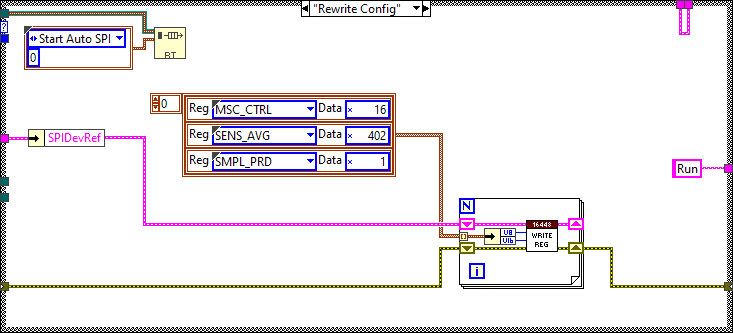

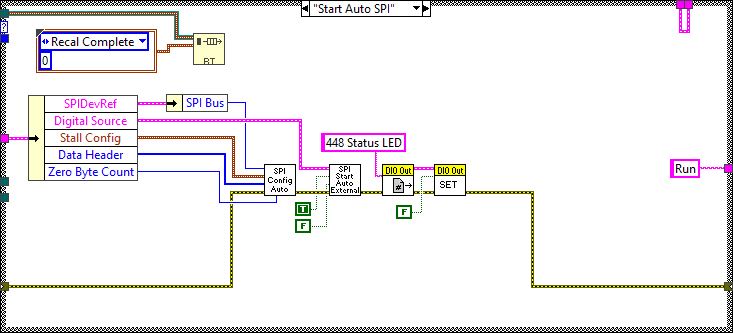

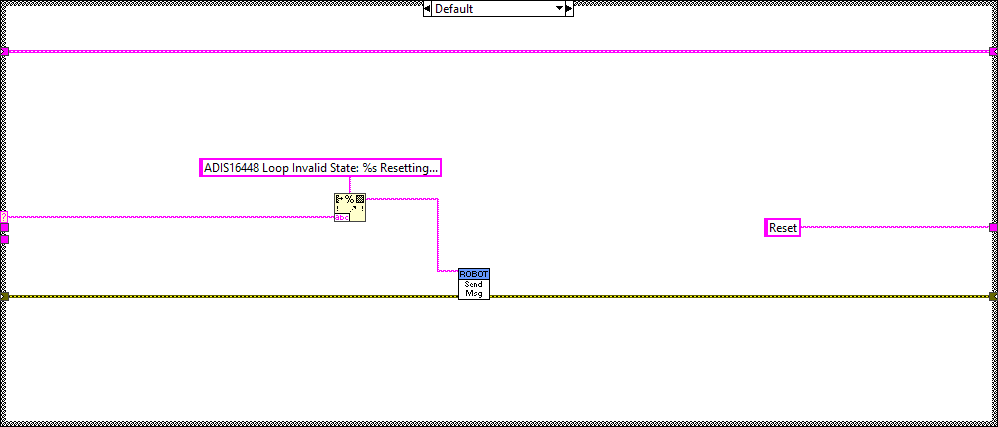

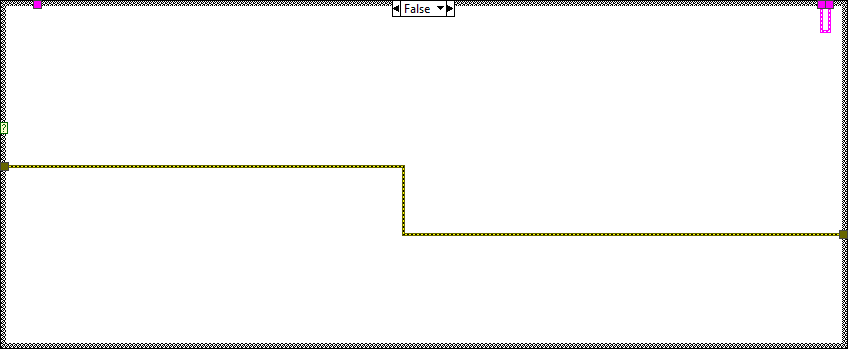

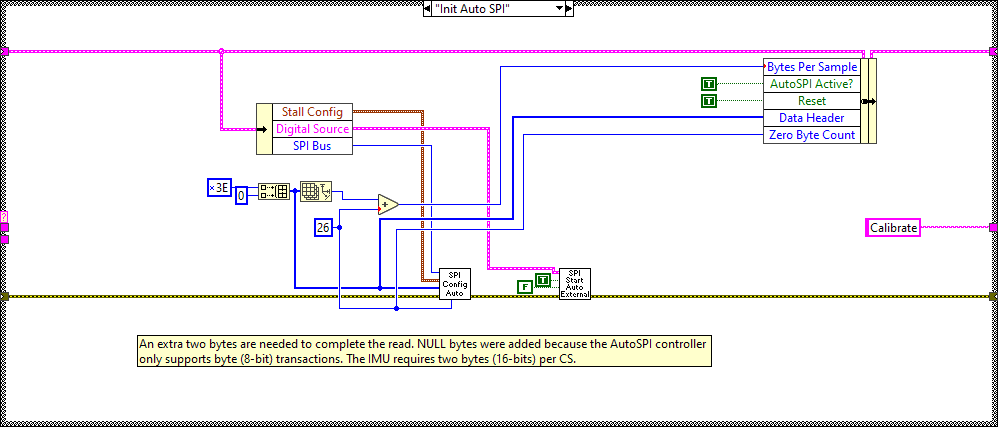

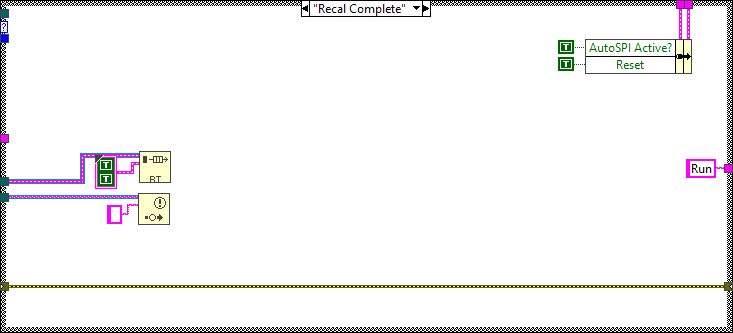

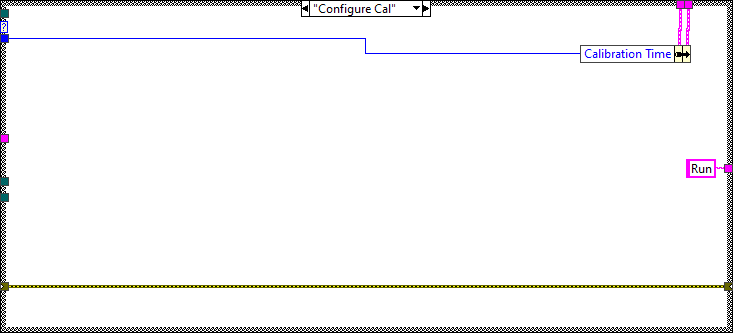

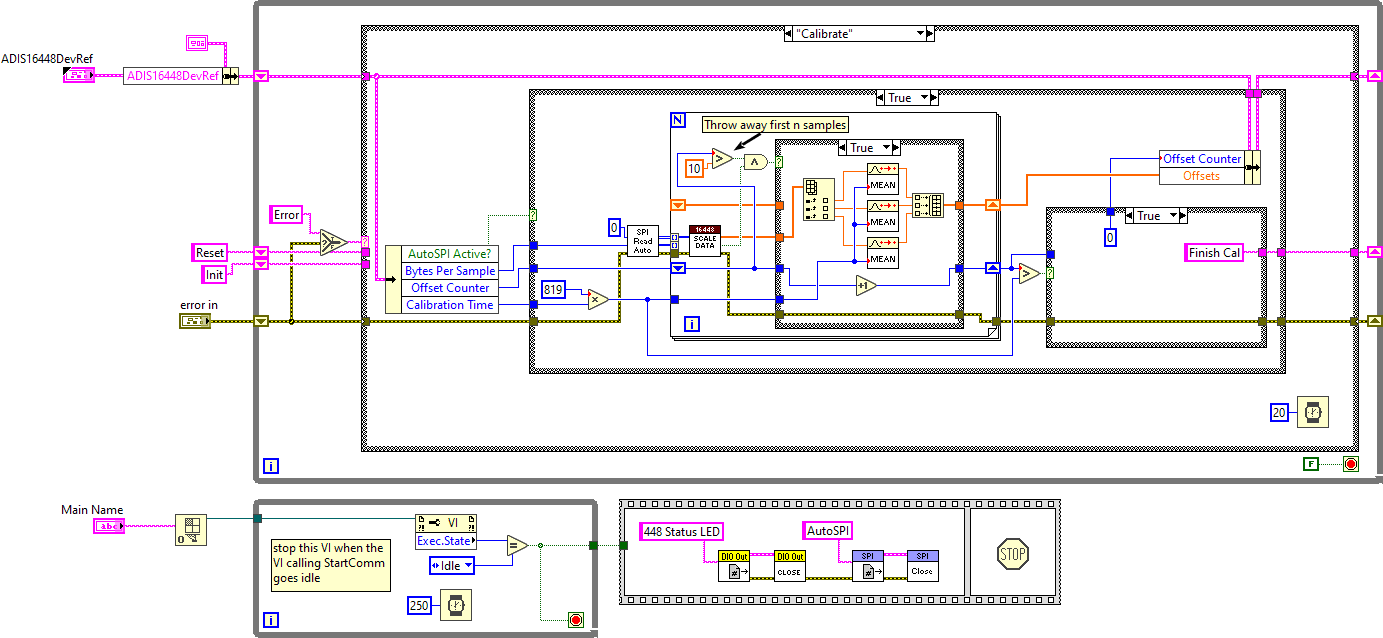

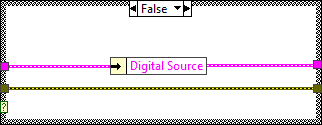

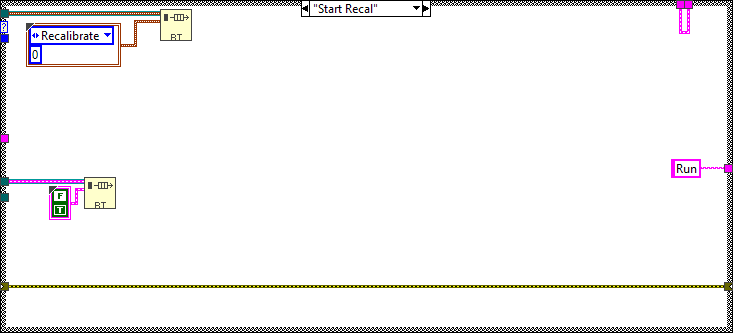

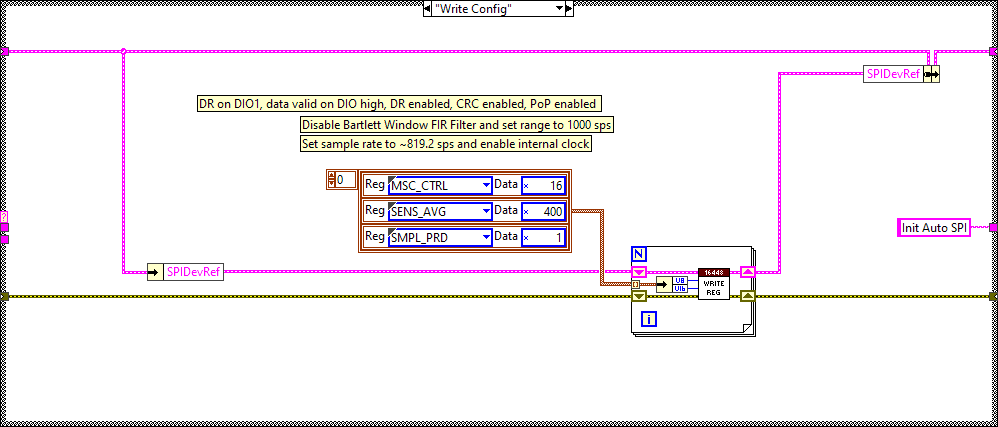

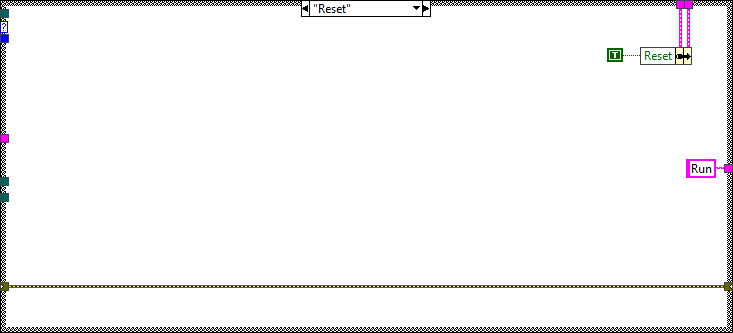

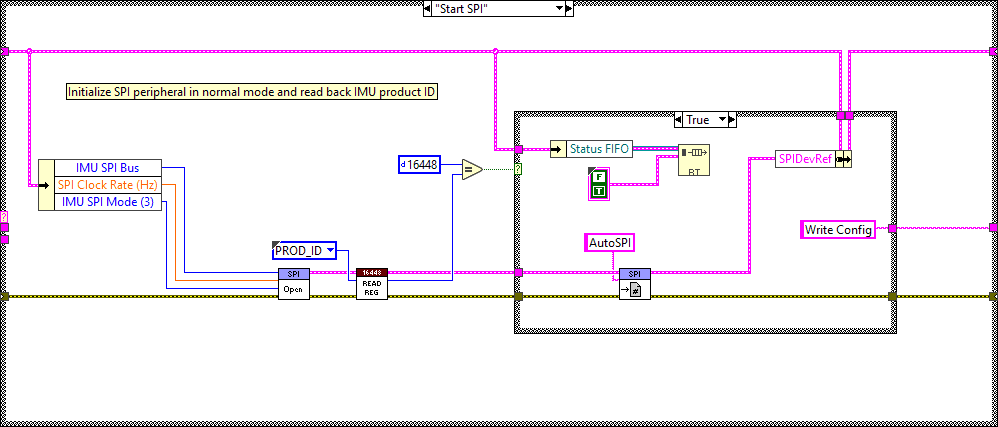

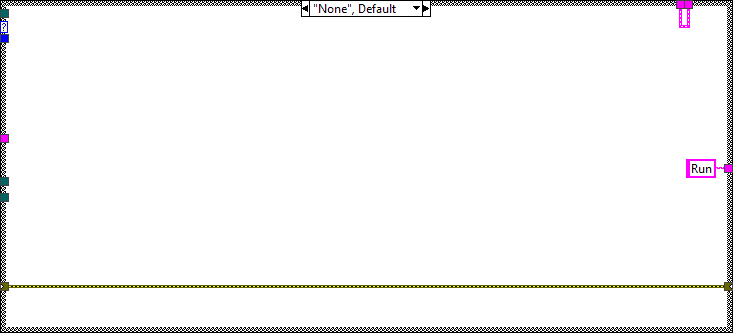

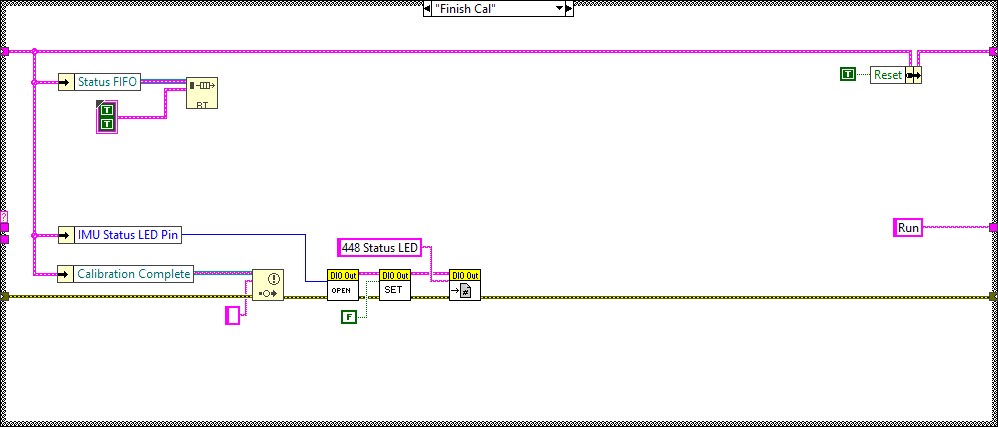

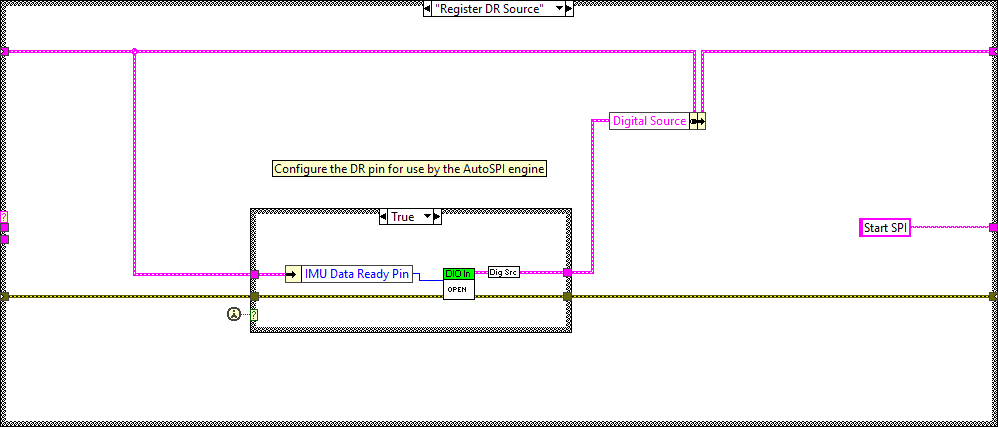

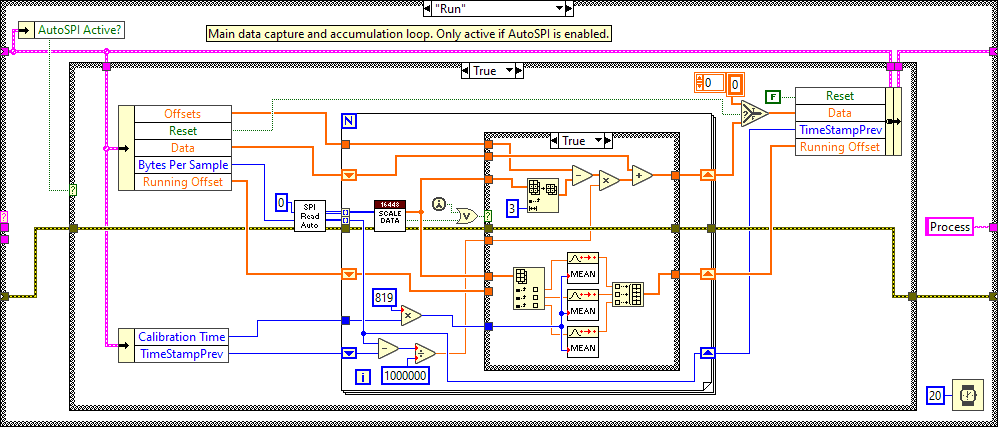

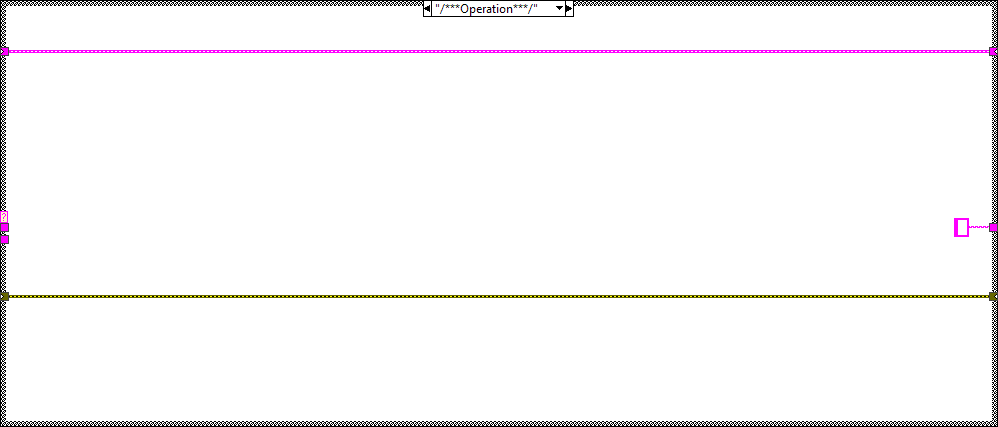

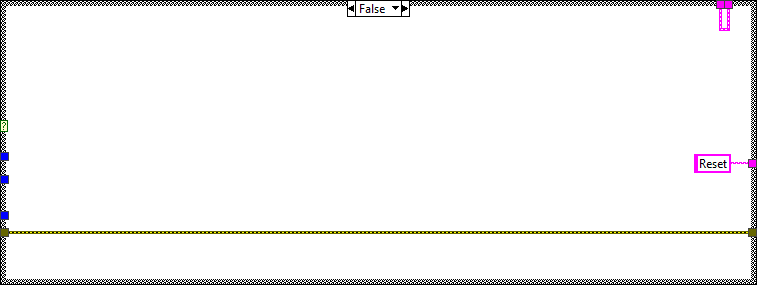

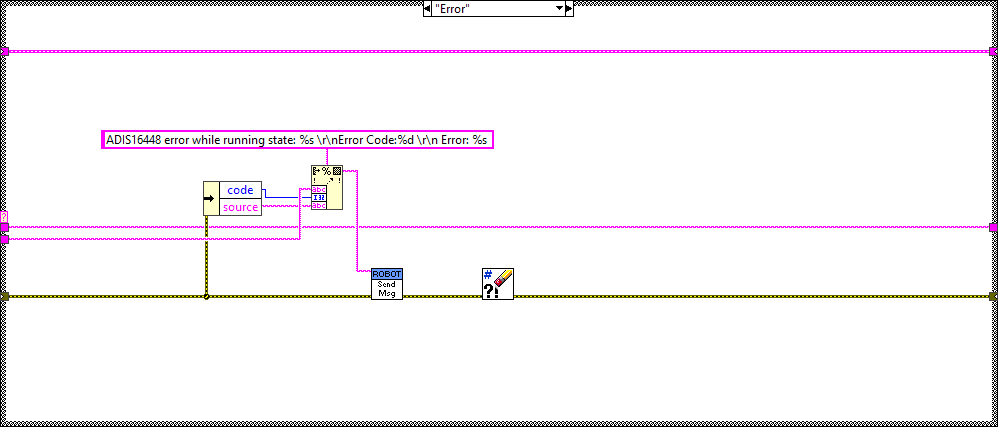

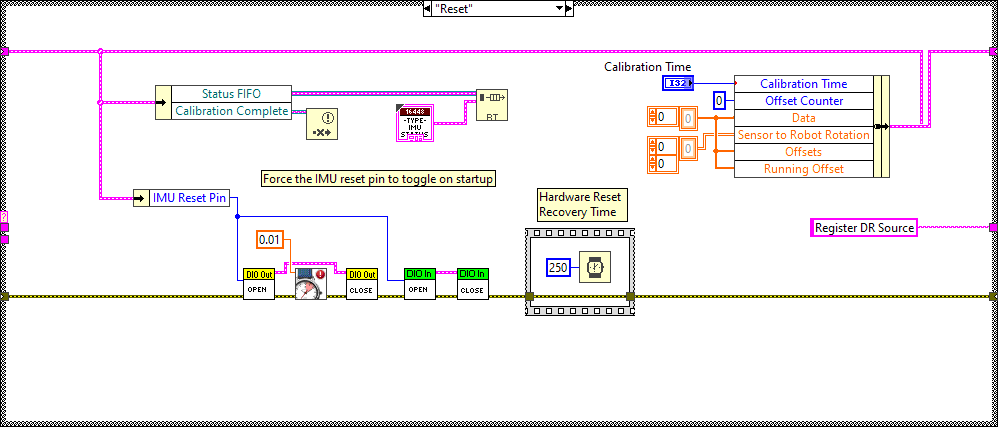

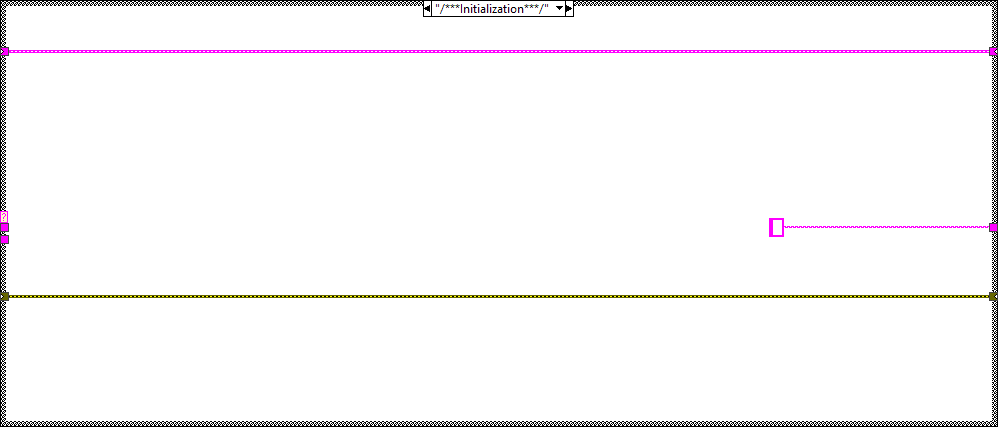

Block Diagram

List of SubVIs and Express VIs with Configuration Information

VI Revision History

"ADIS16448 Loop.vi History"

Current Revision: 531

Position in Hierarchy

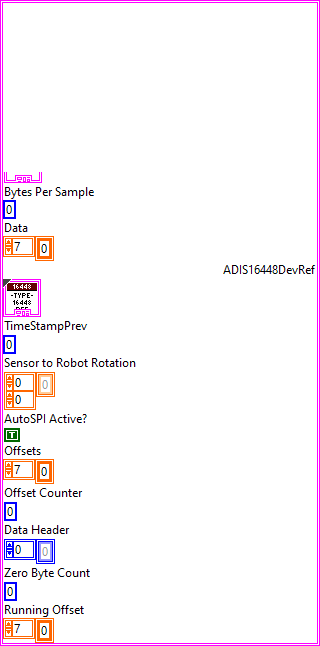

Iconified Cluster Constants
